Weight	3.8 kg
Dimensions	34 × 35 × 18 cm

Weight

3.8 kg

Dimensions

34 × 35 × 18 cm

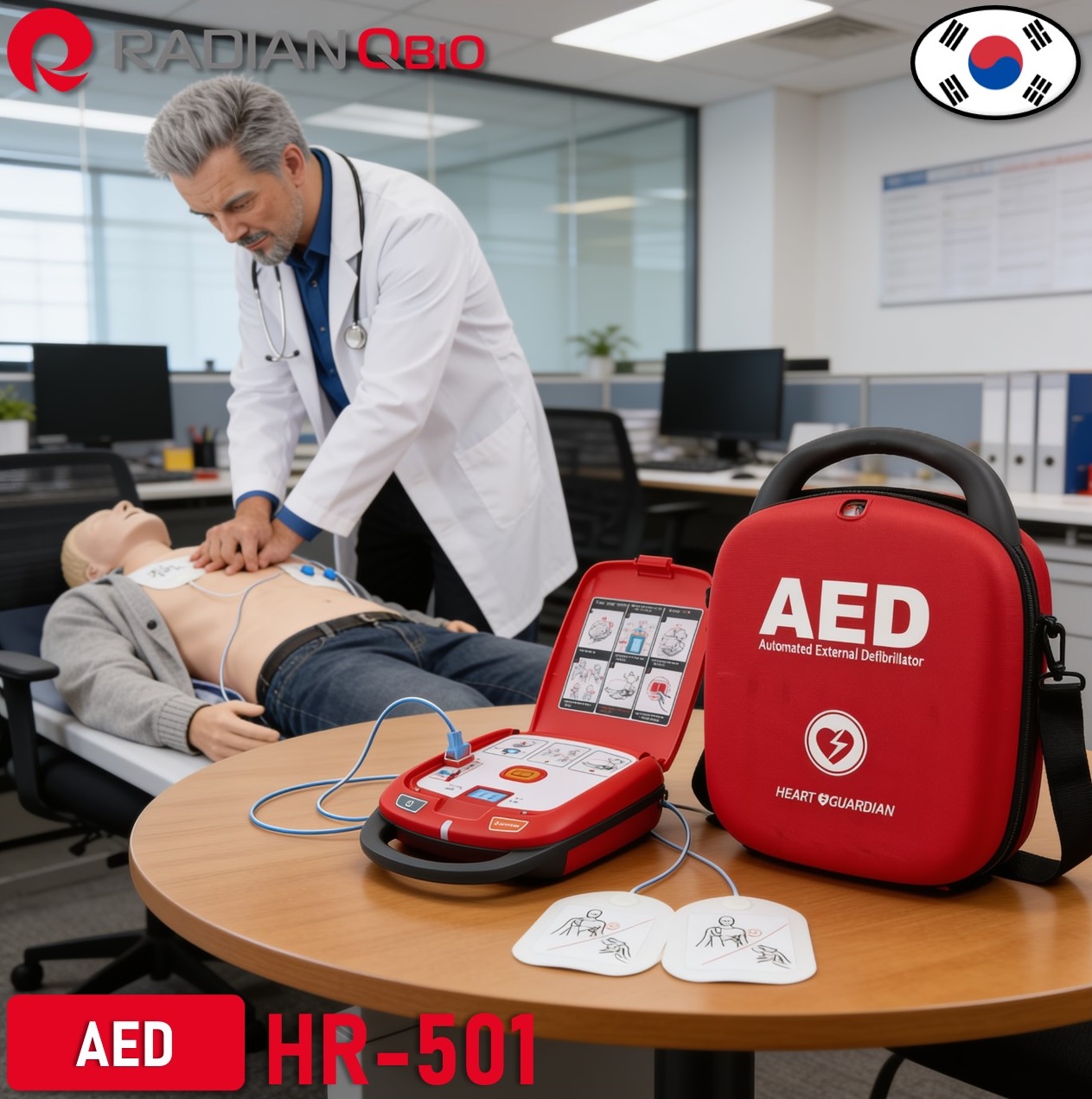

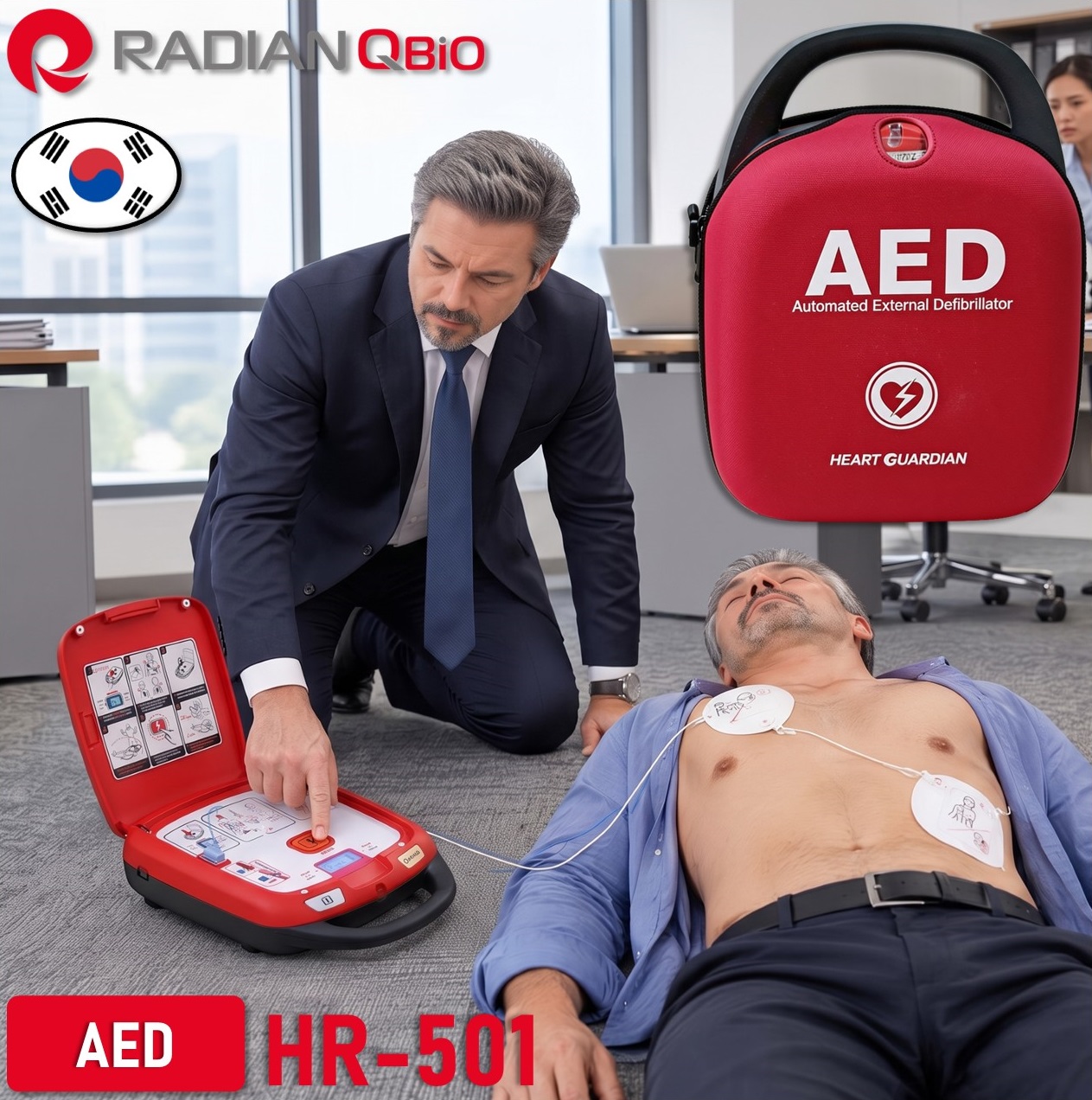

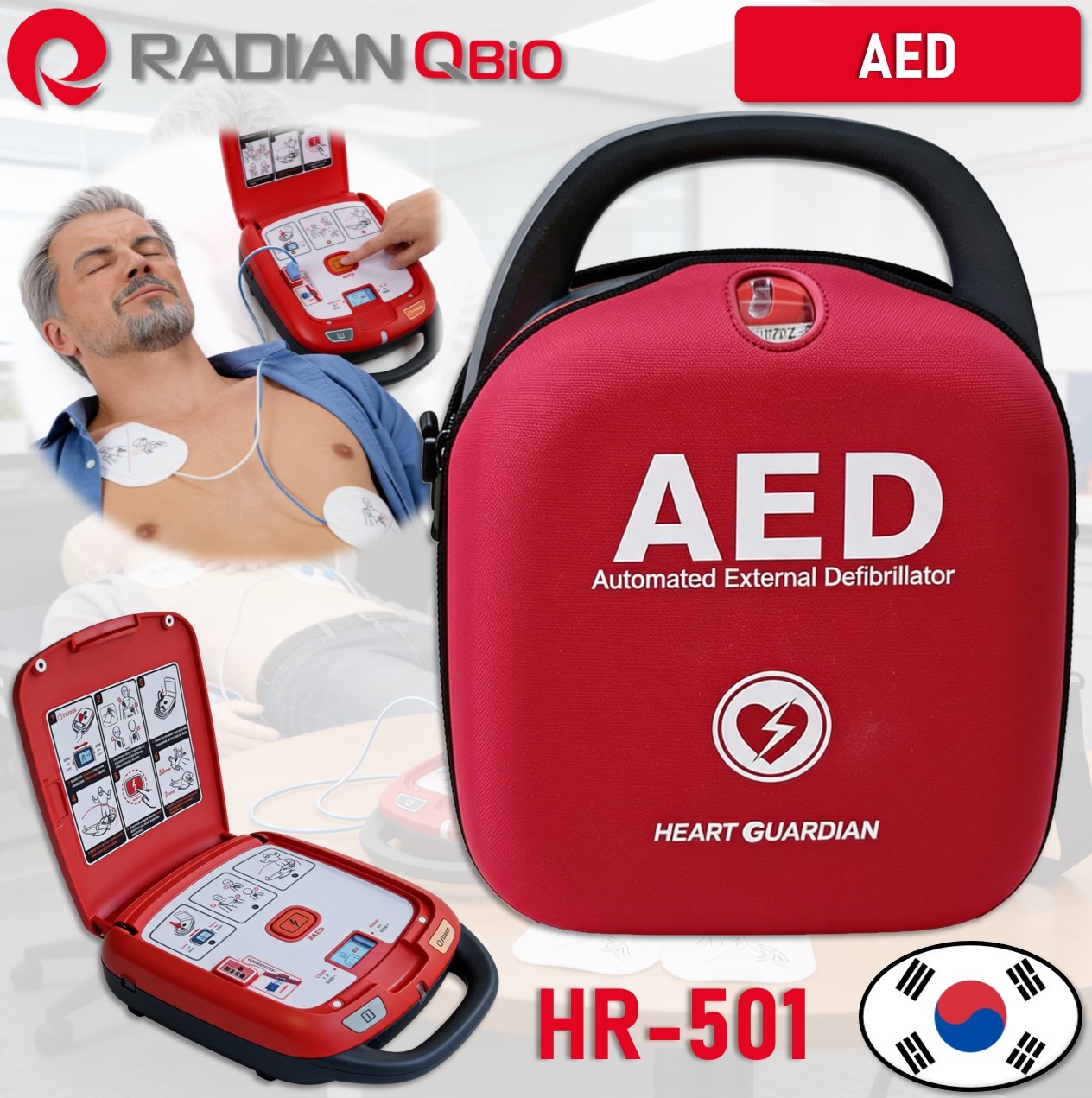

HR-501 | Semi-Automated External Defibrillator

Product Features:

Cardiac arrest incidents are taking place in many public places and non-public areas and Homes.
The AED consumption is increasing in the household in common domestic & overseas markets.

1. Easy to use and accessible by all without special training.

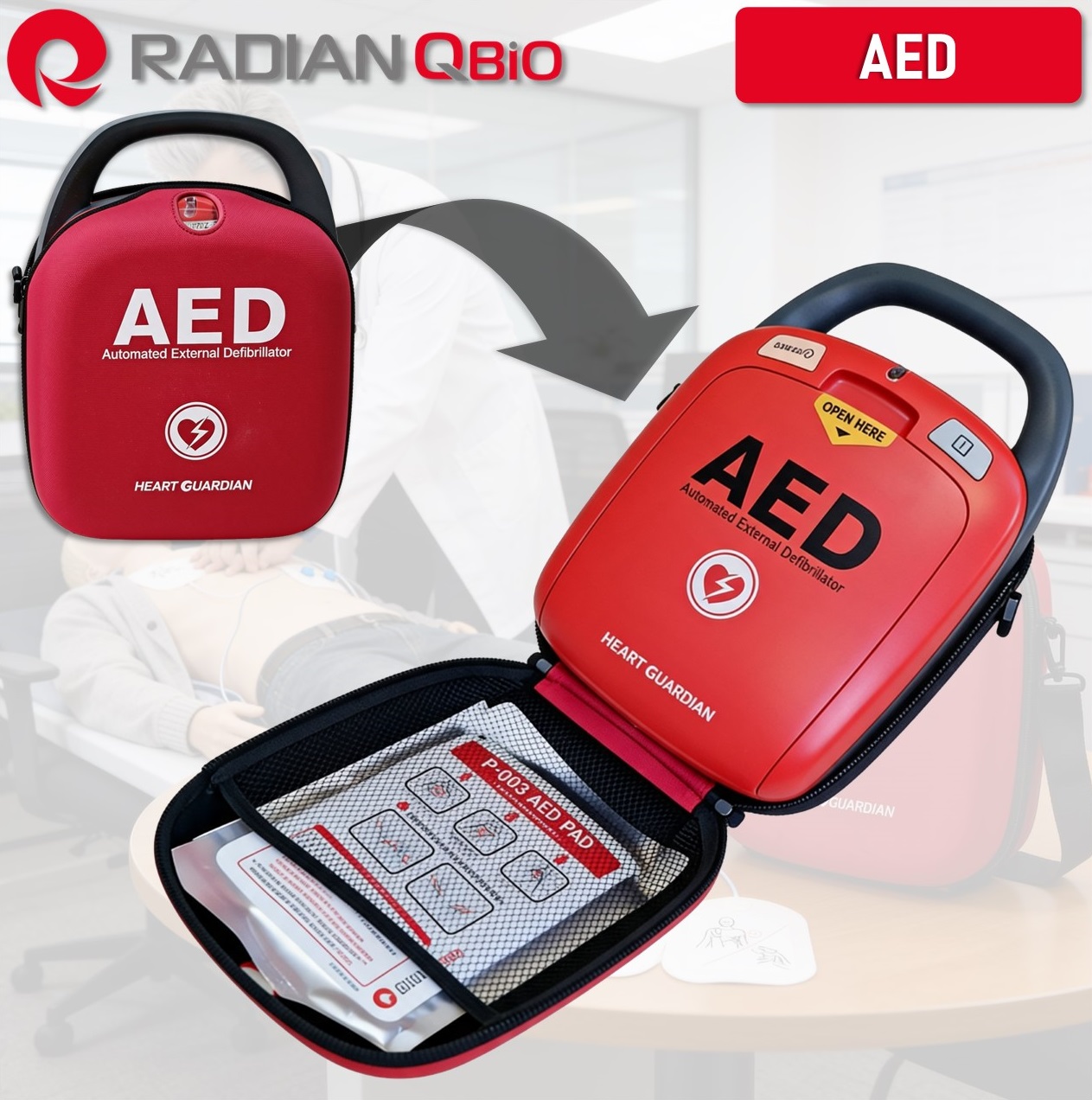

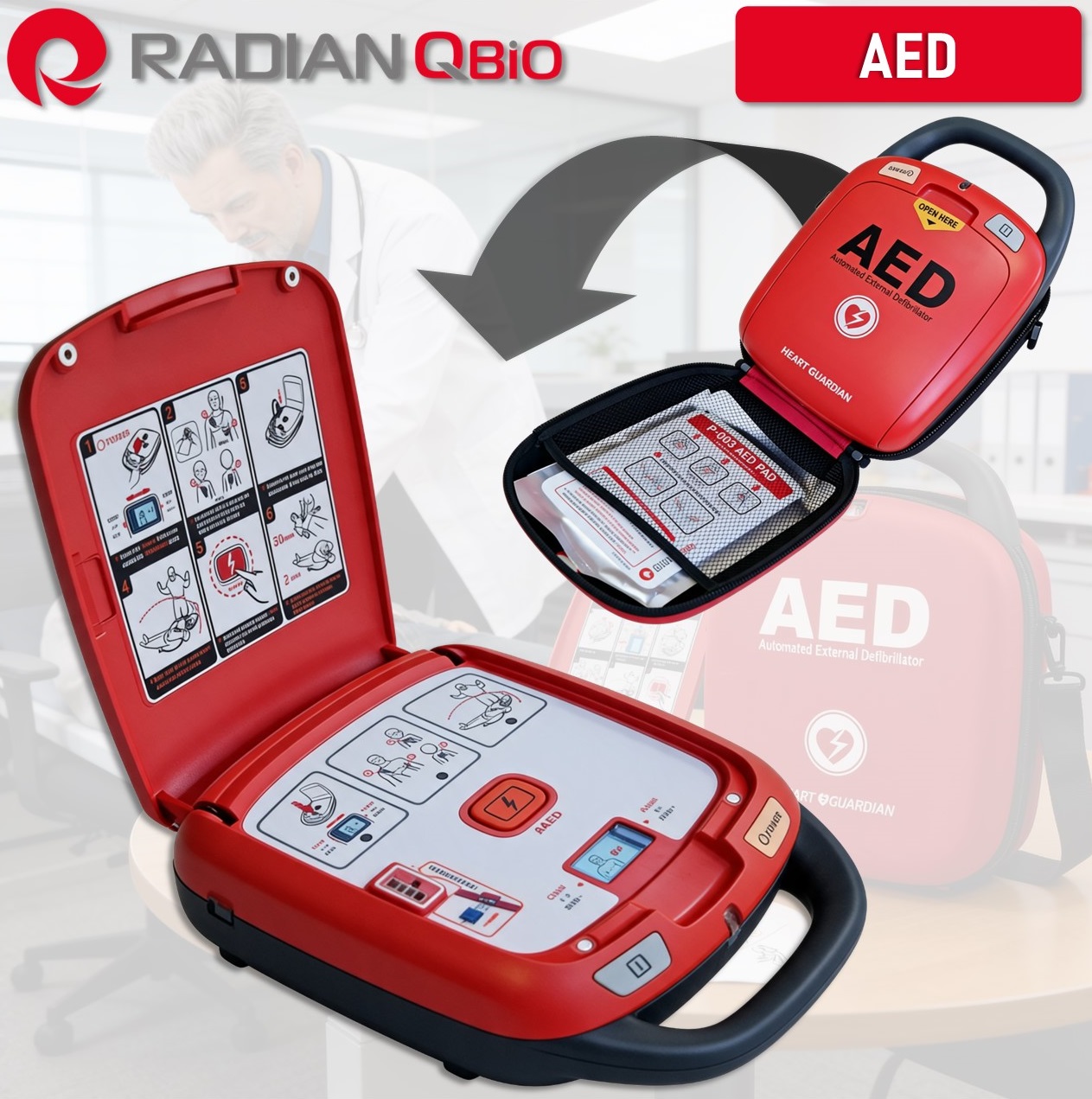

✓ As soon as uncovering AED, there will be audio- guidance for every phase of operation

✓ In the case where no audio LED indicator guides you for accurate

✓ From analysis to charging, services are all-Automated

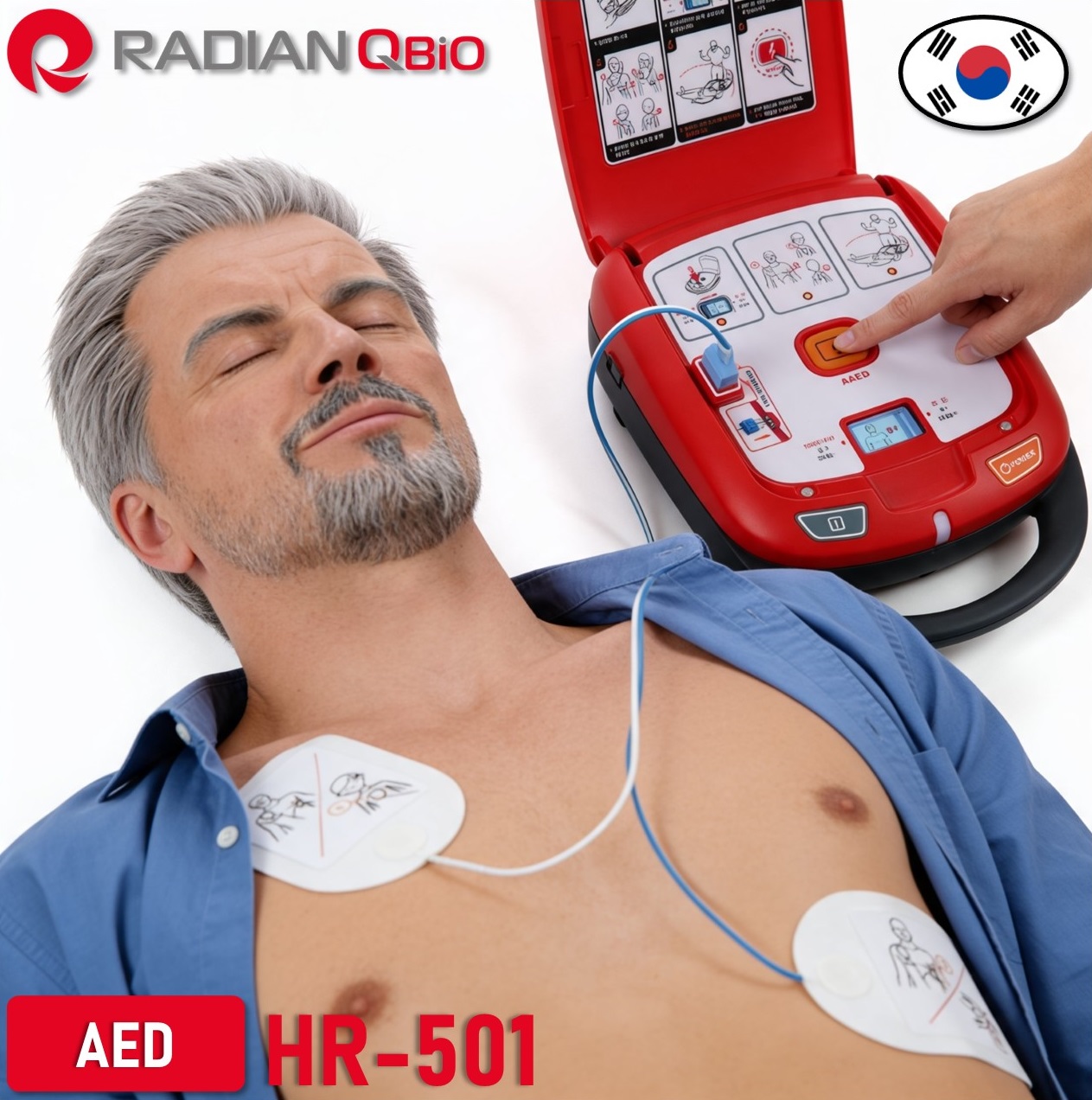

✓ All you need to do is to pads at the right place and press a button to work

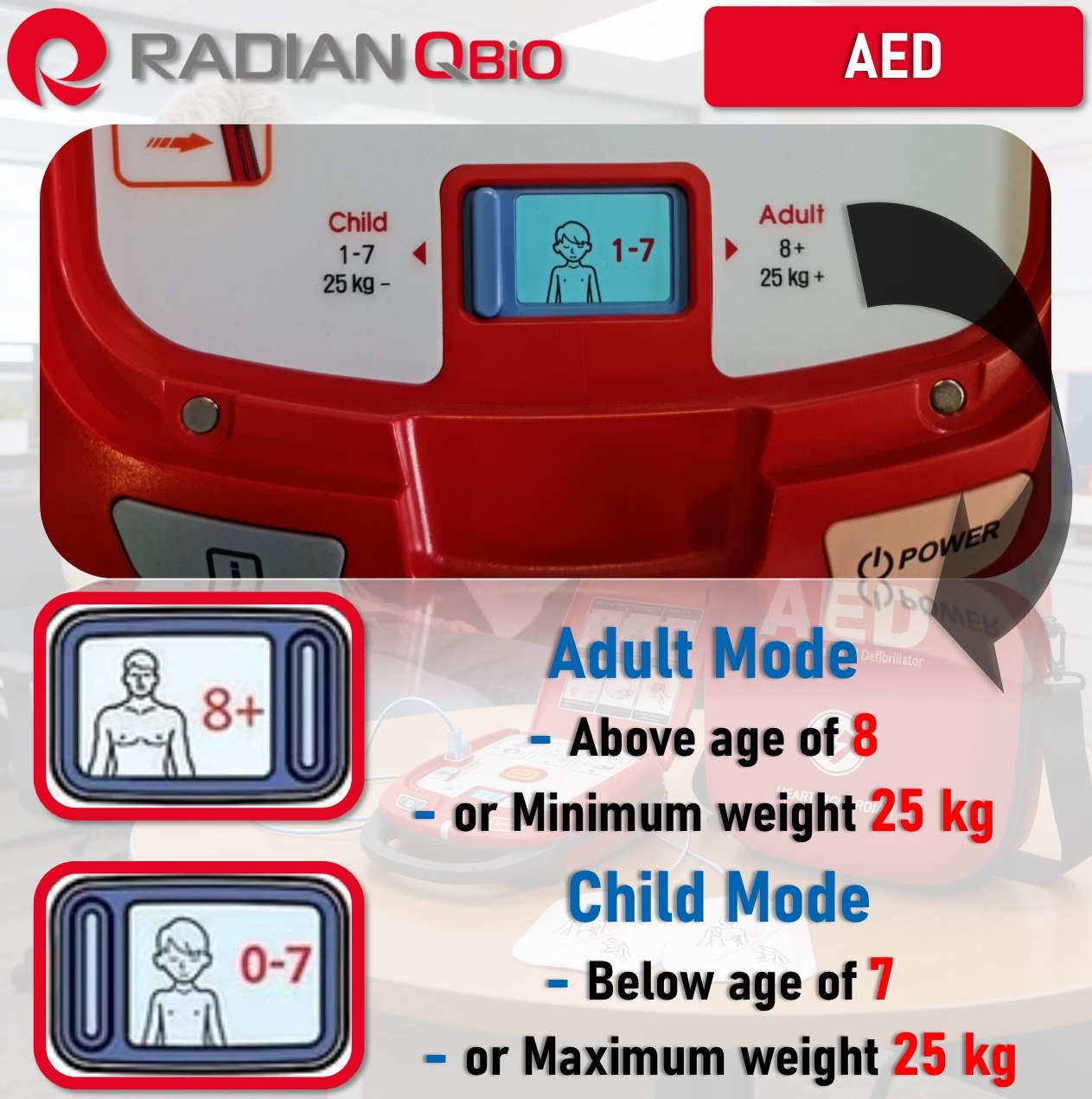

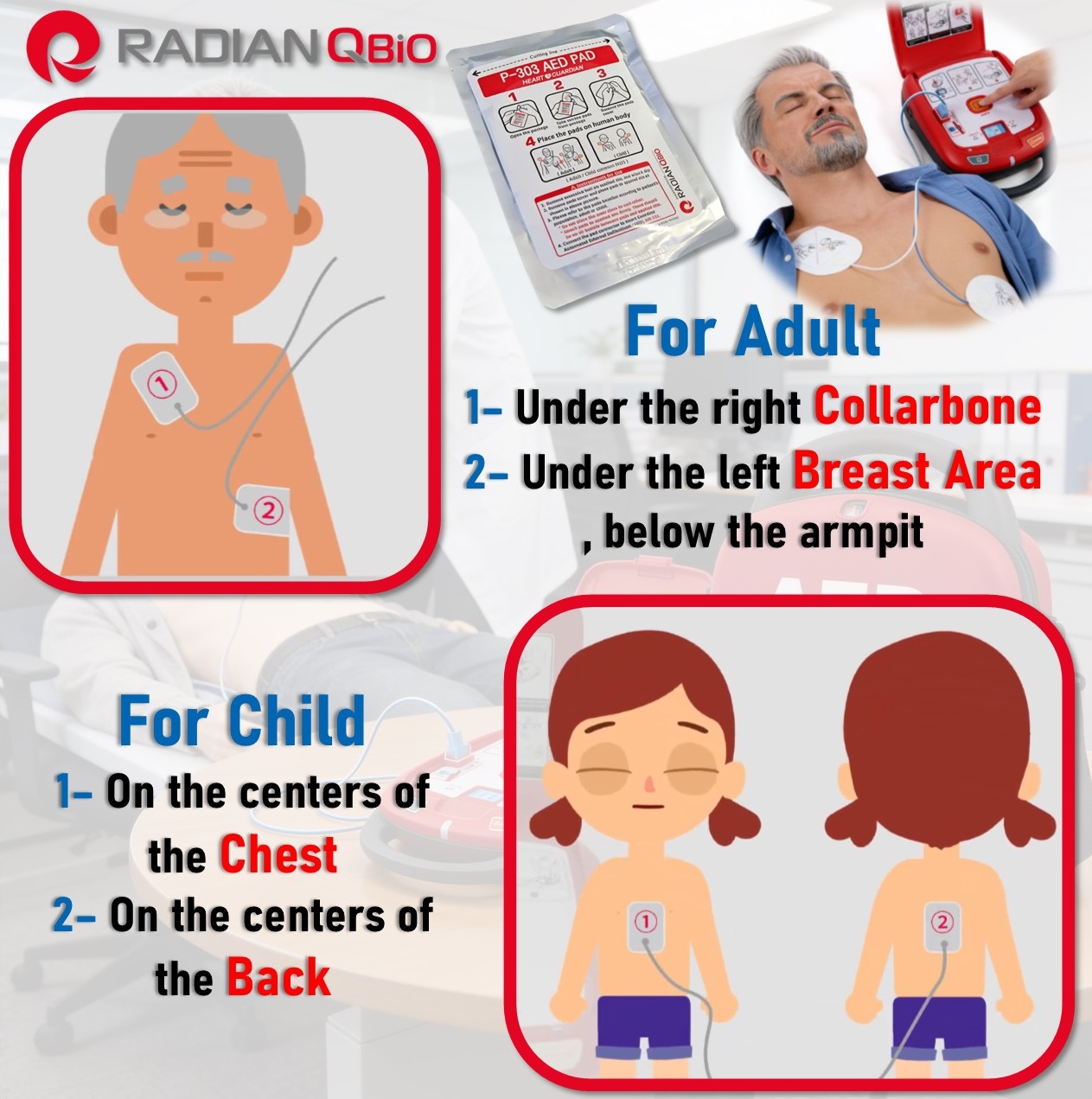

2. Compatible with both Adults and Kids.

✓ AED pads are compatible among any age and gender, simply by setting up one button

✓ Heart Guardian provides the precise amount of shock energy depending on the patient`s boy size and condition into two levels.

3. Heart Guardian offers data extraction with the embedded memory

✓ AED offers a “defibrillation BlackBox” by memorizing the operational history.

✓ Once recorded, data can be transferred out and analyzed by way of Bluetooth-enabled AED.

4. Prompt and Accurate Analysis of ECG 8.5second.

✓ Heart Guardian offers ECG (Electrocardiography) analysis in just 8.5 seconds.

✓ ECG Analysis function offers to detect irregular cardiac waves with 97.8% confidence and immediately commences electric charging upon detection. An embedded shock timing table based on the patient’s impedance levels enables the most accurate charging time and shock timing analysis.

5. BiMos High-Voltage Switching Circuit.

✓ Heart Guardian provides the precise amounts of shock energy depends on the patent’s boy size and condition into two levels. RADIANQBIO’s “BiMos High-voltage Switching Circuit technology” enables the sudden high voltage(above 2,000V) generation within 8 seconds.

Product Specification

Model	HR-501
Product Type	Low-output CPR Machine (Folded)
ECG Analysis	8.5 Sec.
Hi-Cap Charging	8 Sec.
Output	50J~150J offered
Data Storage	100 th (ECG storage)
Data Transfer Protocol	Bluetooth 2.0
Control Button	Power, Shock, Adults/kids

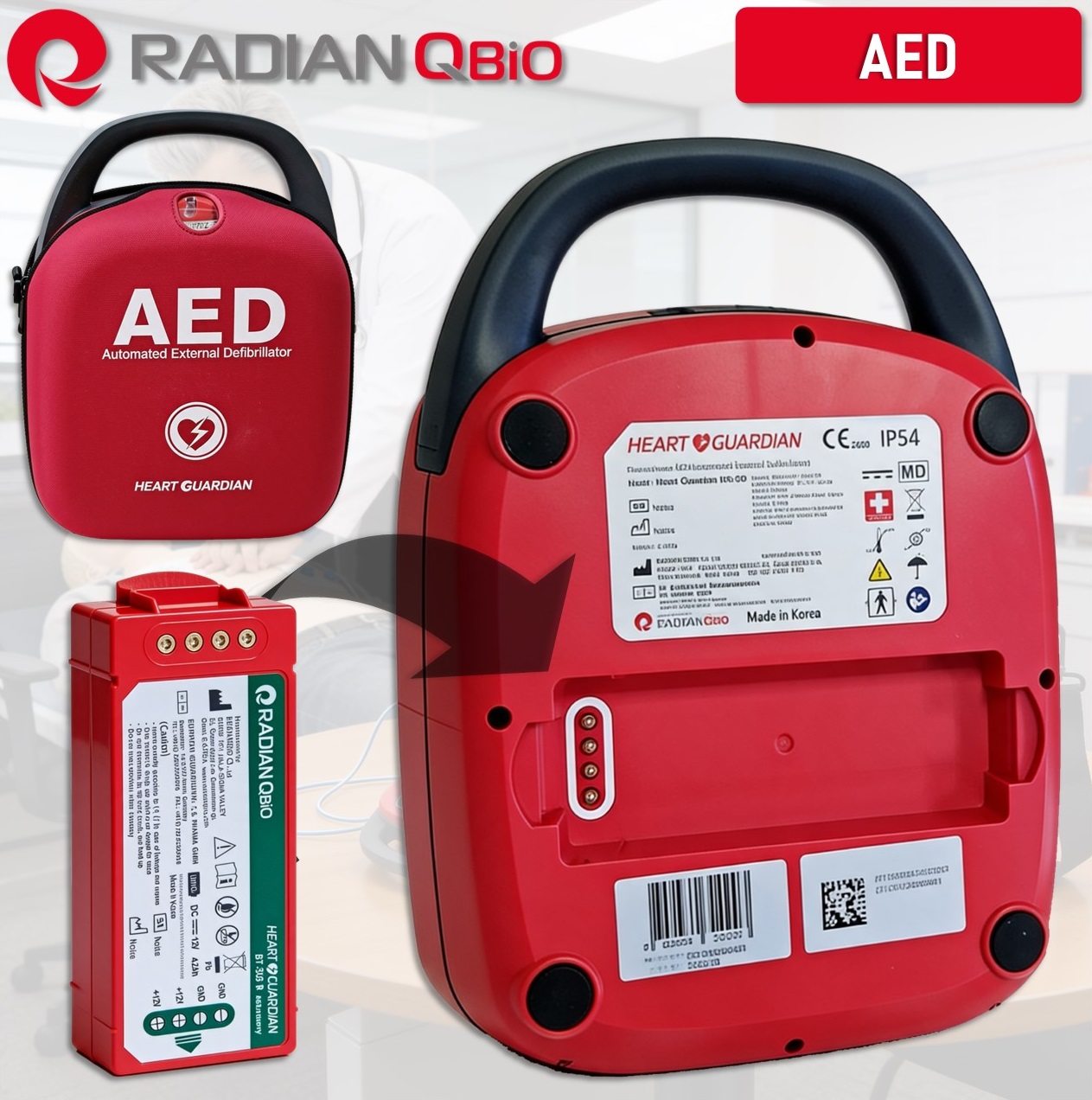

Battery Type	Li-Mn (12V DC 4.2A)
Shock Frequency	200, at least

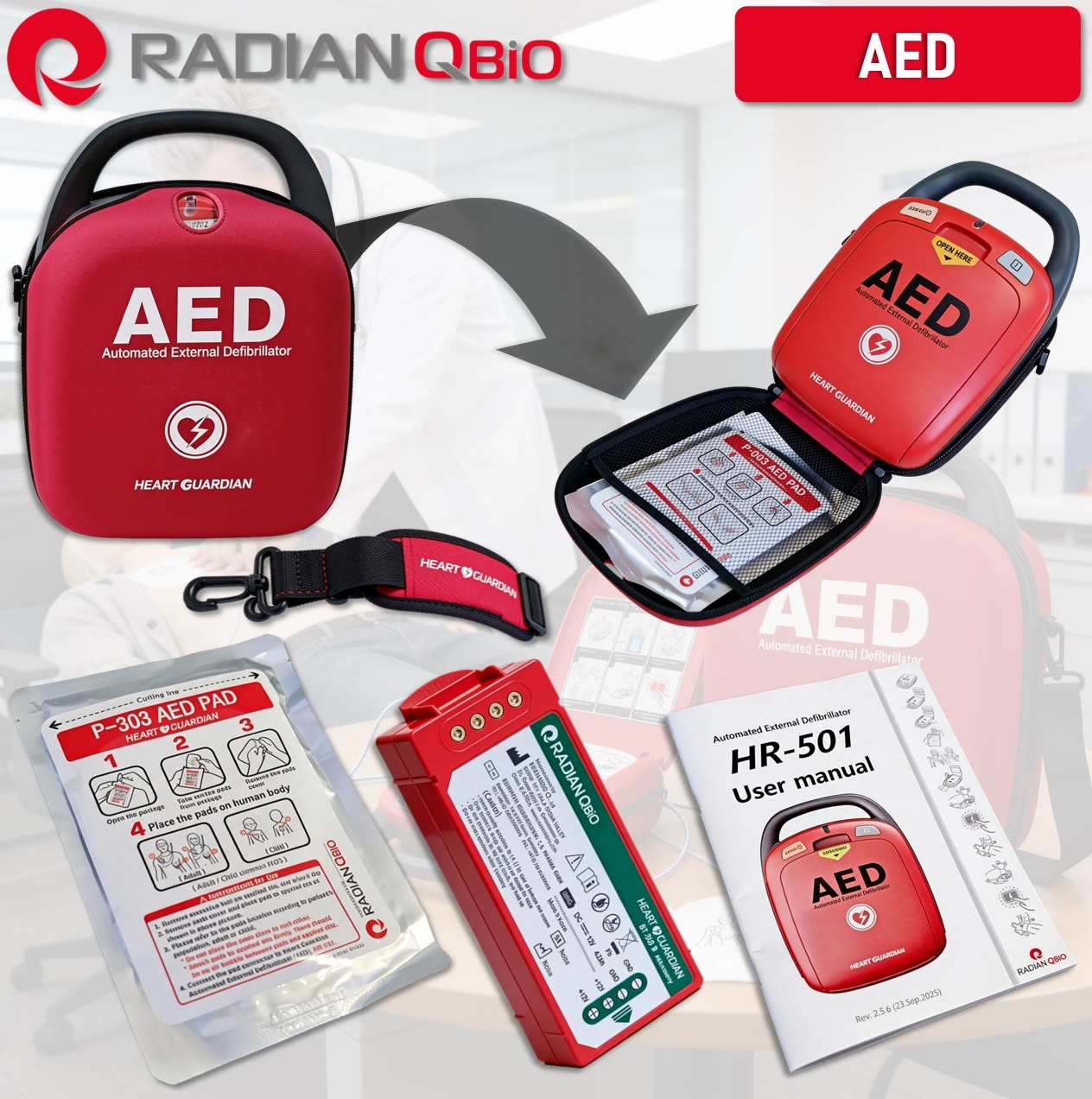

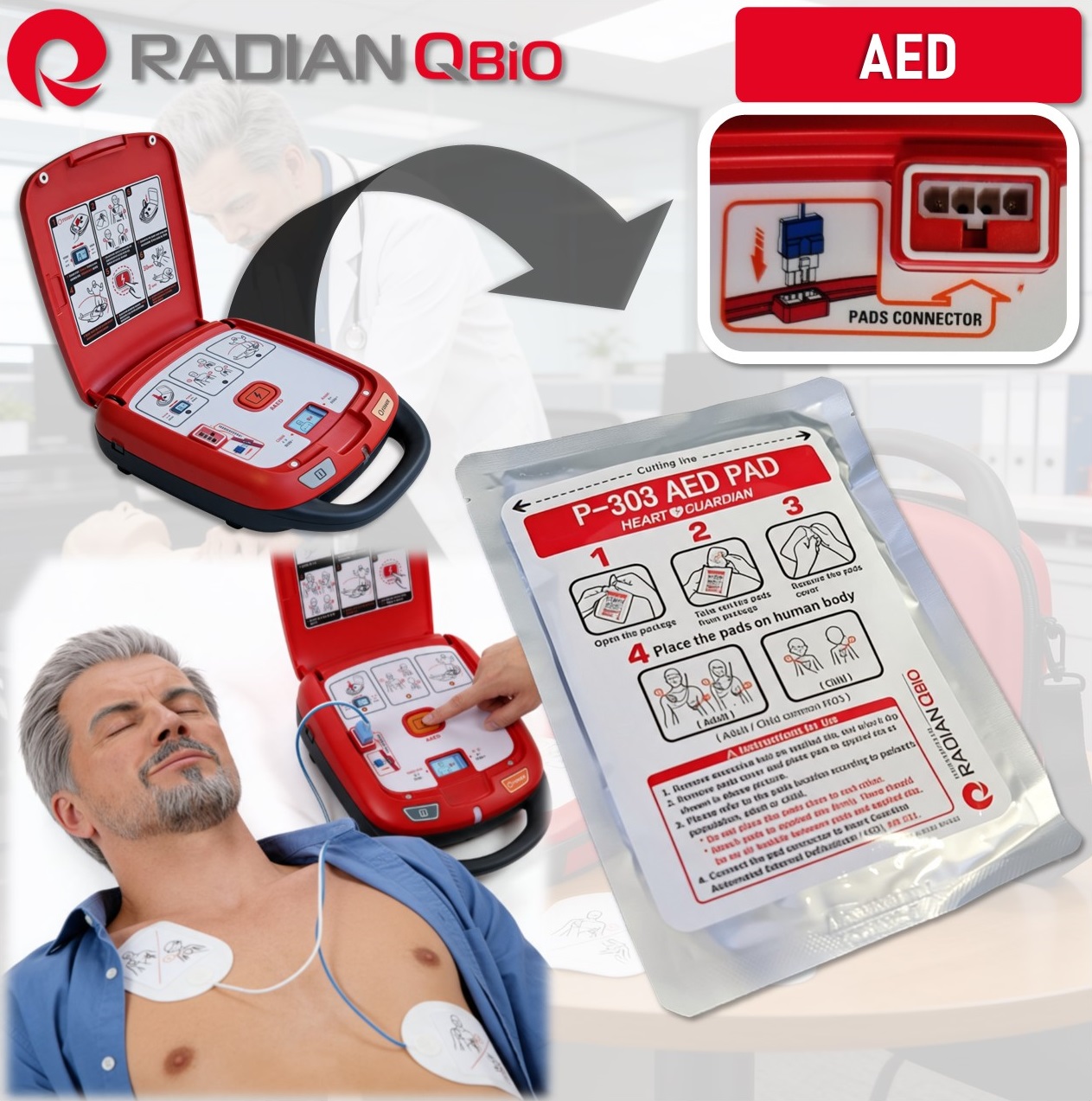

Pad Type	Electrode Pad, disposable and adhesive
Dimension	230(W) x 320(L) x 85(H)mm
Weight	1.9 kg
Warranty	1 Year

Other Specification

HS code	9018.90
Net weight / Gross weight	2.5kg / 3.8kg
Carton size (1pc)	34 X 35 X 18 (cm) / 3.8kg
Carton size (2pcs)	34 X 35 X 40 (cm) / 7.6kg
Carton size (4pcs)	68 X 40 X 40 (cm) / 15.2kg
Certificate	CE / ISO 13485

Attachments

File	File size	Downloads
RADIAN AED HR-501	1 MB	1929

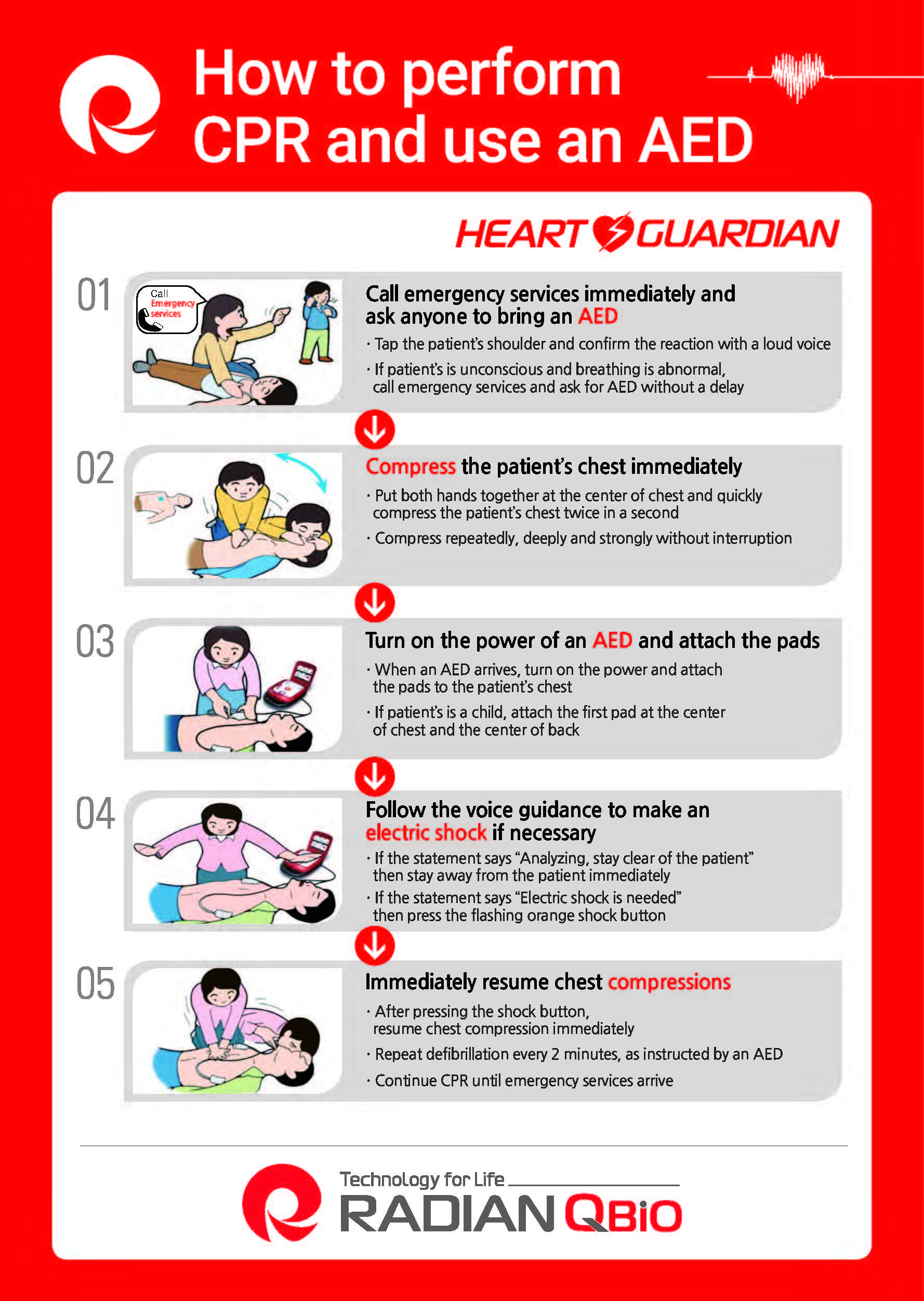

instructions ARABIC	431 KB	1801
